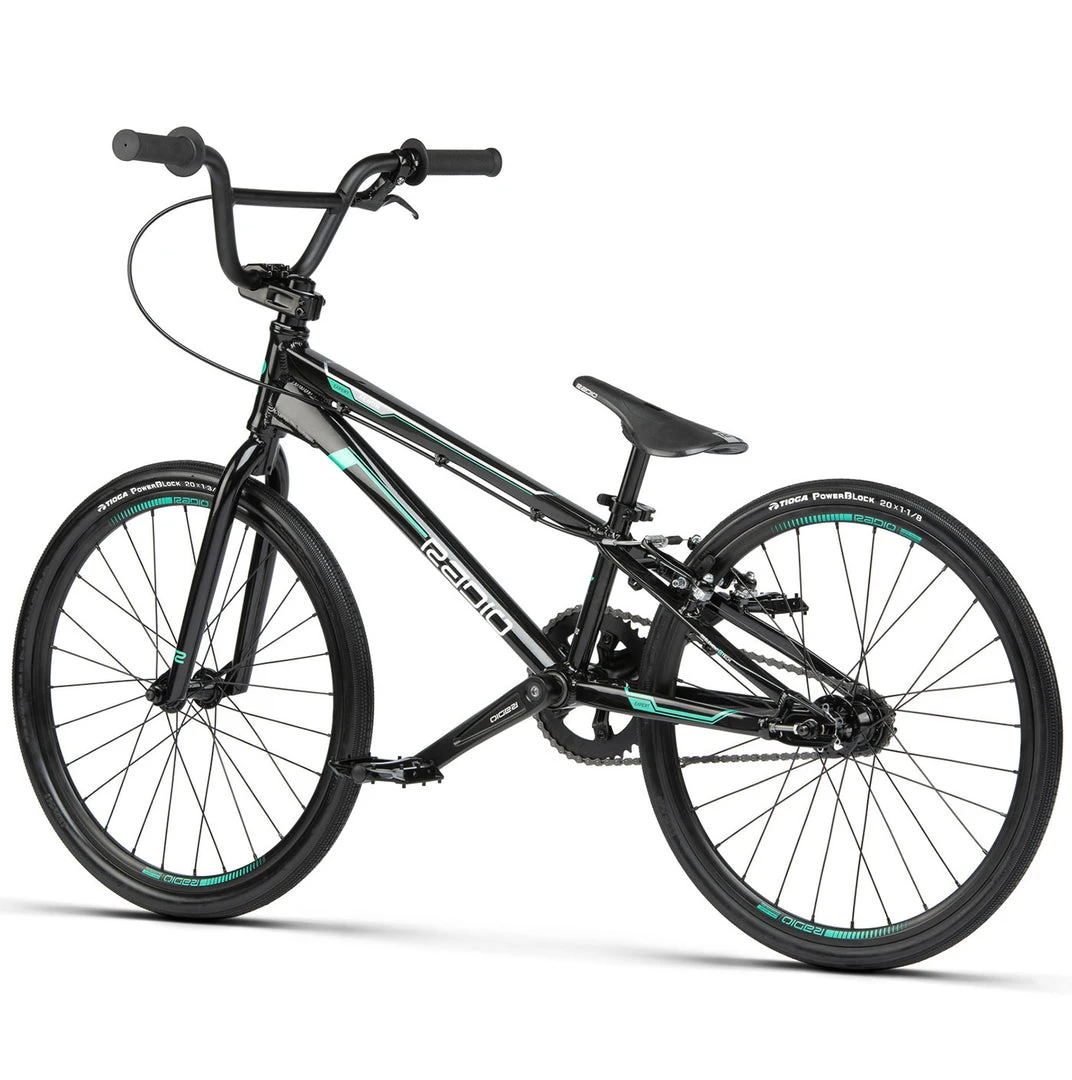

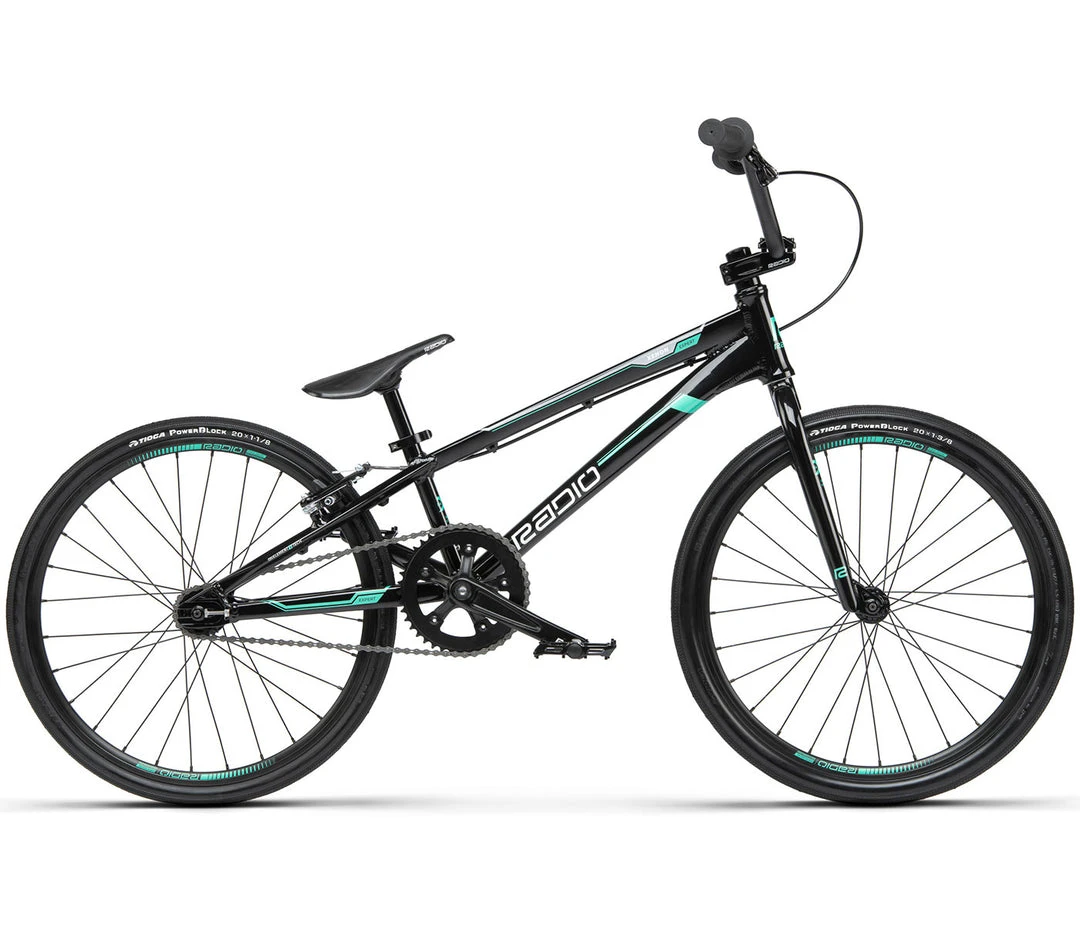

Radio BMX Radio Xenon Expert BMX Bike (2021) BMX Race

RADIO XENON EXPERT RACE BIKE KEY FEATURES

• Disc brake mount ready frame
• Sealed bearing hubset with quick engaging cassette hub
• 42/16 gearing
• Lightweight 28 hole double wall rims
• Tioga Powerblock tires
• 6061-T6 alloy frame and handlebars
• 165mm alloy 2-piece Radio cranks

SIZING:
To suit riders 150 – 162cm tall. Recommended for BMX racing only.

If you don’t know the Radio Raceline brand yet, you soon will. Coming from the same minds as WTP and Eclat, Radio Raceline are bringing their renowned quality and ingenuity to the BMX race world.

The Radio Xenon Expert race bike comes through with high end race componentry, built around an amazing 6061-t6 frame. The lightweight 28 hole wheelset that is built on the Xenon cassette hub (meaning the ability to change your gearing to any rollout), means the speed is there from the get go.

FRAME GEOMETRY

• TOP TUBE LENGTH: 19.5″
• CHAIN STAY LENGTH: 13.6″
• HEAD TUBE ANGLE: 73.5°
• SEAT TUBE ANGLE: 71°
• BB HEIGHT: 10.8″

SPECS

• FRAME: 6061-T6 alloy, forged dropouts with int. chain tensioners, disc brake ready
• FORK: full crmo, 1-1/8″ butted steerer, 23mm offset
• HANDLEBAR: 6061-T6 alloy, 5.75″ rise, 24.4″ wide
• GRIPS: RADIO “Xenon” clamp-on grips, diamond knurling, 115mm long

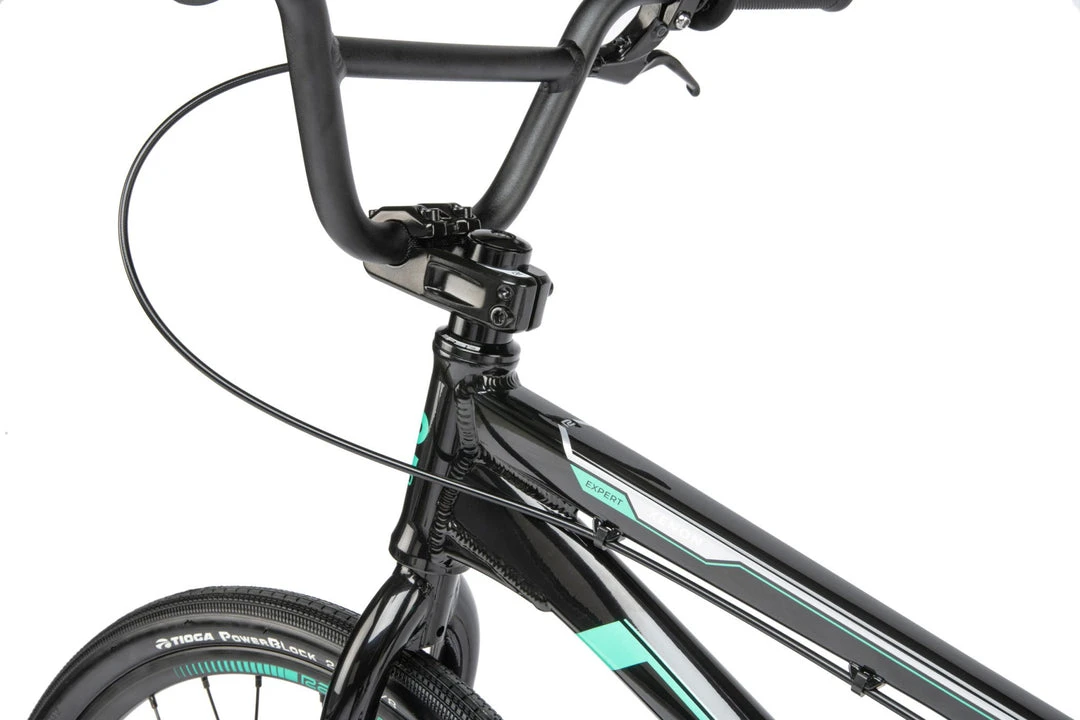

• STEM: RADIO “Cobalt” top load alloy stem, 40mm reach
• HEADSET: RADIO Raceline int. headset, sealed bearing, 1-1/8″
• BRAKE LEVER: PROMAX “XL-378” alloy brake rear
• BRAKE: PROMAX “MV-85” alloy brake rear

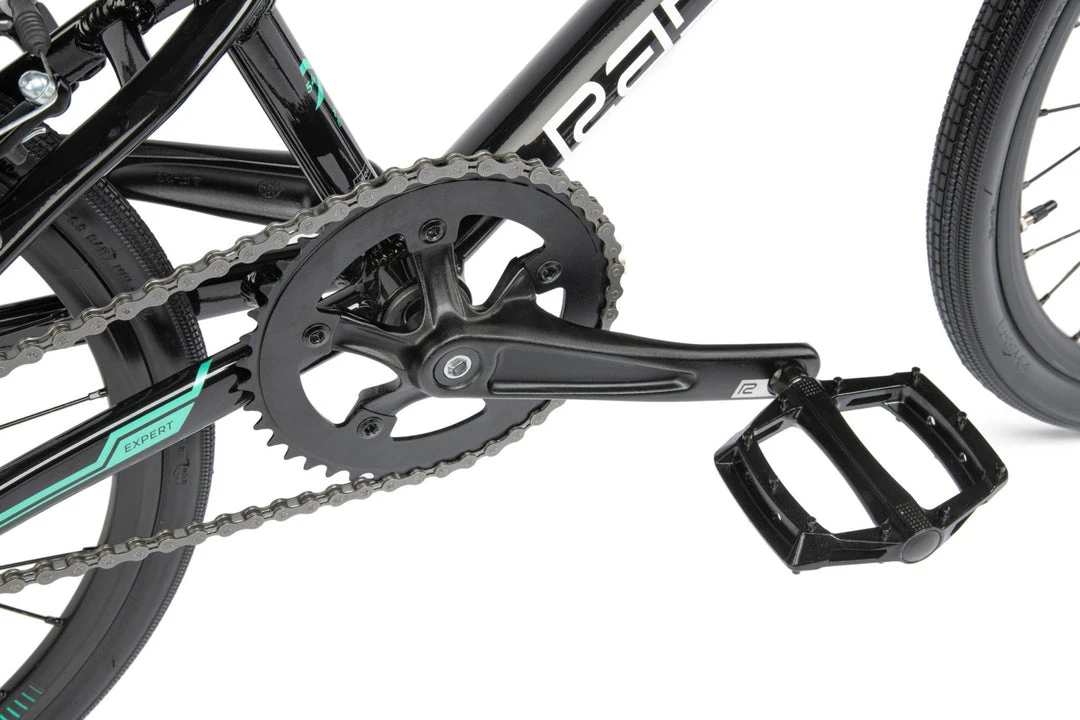

• CRANK: RADIO “Xenon” cold-forged alloy 2pc crank, 165mm length
• BB: RADIO Raceline BSA Square Taper
• PEDALS: RADIO Raceline “Xenon” Junior
• CHAIN: KMC Z33 1/2′ x 3/32″
• SPROCKET: RADIO “Xenon Pro” alloy, 42t sprocket
• DRIVER: RADIO, 16t cog, sealed driver
• FRONT HUB: RADIO “Xenon” alloy hub, sealed bearing, 3/8″ female bolt, 28h

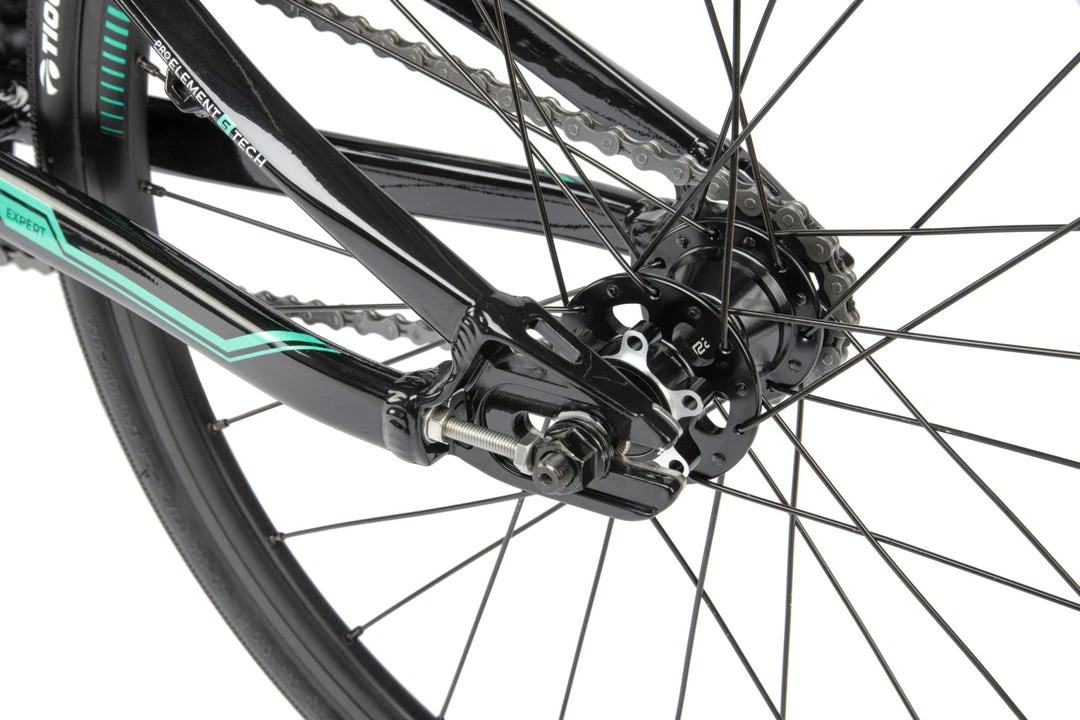

• REAR HUB: RADIO “Xenon” alloy cassette hub, sealed bearing, 3/8″ female bolt, 28h, disc brake cassette
• RIMS: Radio “Clipper Junior” rims, double wall, sleeved join, 28h
• SEAT: RADIO Xenon Pivotal, no padding
• SEAT POST: Radio Pivotal, Alloy 22.2mm
• SEAT CLAMP: RADIO “Xenon” alloy seat clamp, quick release
• TIRES: Tioga “Power Block” tires, 20″ x 1-3/8″
• WEIGHT: 8.19kg / 18.06lb
